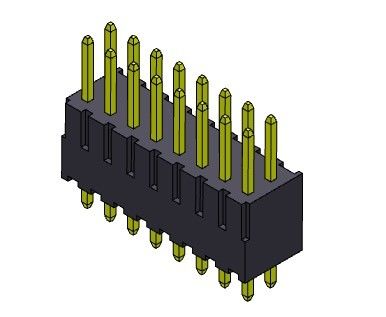

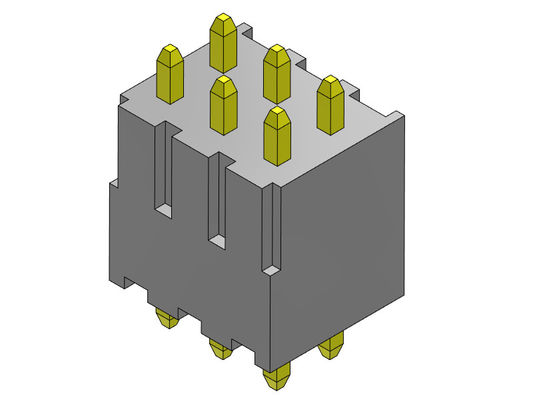

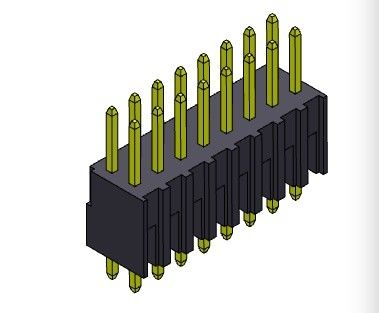

Pin Header Connector 2.54mm Dual Row DIP TYPE 2*2PIN To 2*40PIN H=7.40MM

Pin Header Connector 2.54mm Dual Row DIP TYPE 2*2PIN To 2*40PIN H=7.40MM

Scope Of Application

Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

What's the Pin Header

Pin header is a type of electrical connector, this connectorare widely used in electronic or instrumentation of PCB (Print Circuit Board) function as bridge between two PCBs which were blocked, and used to take current or signal transmission

pin header is a form of electrical connector. It consists of one or more rows of male pins typically spaced 2.54mm (0.1 in) apart, but common sizes also include 5.08mm (0.2 in), 5.00 mm (0.197 in), 3.96mm (0.156 in), 2.00 mm (0.079 in), 1.27 mm (0.05 in) and 1.00 mm (0.04 in). The distance between pins is commonly referred as pitch in the electronic community.

SYMHA212-XXXXA01 2.54MM 7.4H PIN HEADER.pdf

Product Application

Male pin header widely used in different industry such as air-condition, multimedia, UAV and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team

Our Service

1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquirys within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer,We'll provide more than 20pcs samples for prototype project if necessary.

5.Our business is not just about connector supply, it's about delivering promises.

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.
