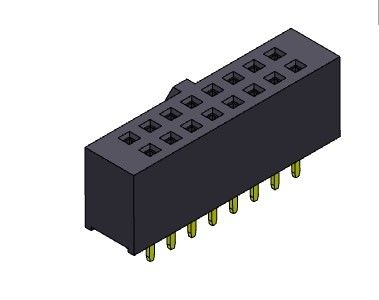

Dual Row Dip TYPE 2.54 Mm Pitch Female Header 22PIN To 240PIN

Large Image : Dual Row Dip TYPE 2.54 Mm Pitch Female Header 2*2PIN To 2*40PIN

Product Details:

Place of Origin:	China
Brand Name:	Soyoung
Certification:	SGS ,REACH
Model Number:	SYFHA217-XXXXA01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	It depends on the customers' requests and can be negotiable.
Packaging Details:	Box,Tube packing
Delivery Time:	10-14works
Payment Terms:	T/T
Supply Ability:	500K/Month

\",\"countrycode\":\"\"}");' class="btn contact_btn" style="display: inline-block;background:#ff771c url(/images/css-sprite.png) -260px -214px;color:#fff;padding:0 13px 0 33px;width:auto;height:25px;line-height:26px;border:0;font-size:13px;border-radius:4px;font-weight:bold;text-decoration:none;">Contact Now

Dual Row Dip TYPE 2.54 Mm Pitch Female Header 22PIN To 240PIN

Description

Current Rating:	3.0 AMP	Insulation Resistance:	1000MΩMin
Dielectric Withstanding Voltage:	600V AC	Product Family:	Board To Board Connector
Number Of Rows:	Dual	PCB Mount Type:	Through Hole
Highlight:	Dip TYPE 2.54 Mm Pitch Female Header , Dual Row 2.54 Mm Pitch Female Header , female pin header 2.54 mm 2*40PIN

Female Header 2.54mm Dual Row Dip TYPE 2*2PIN To 2*40PIN H=8.50mm With Bump

What's the Female Header

Female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.

Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

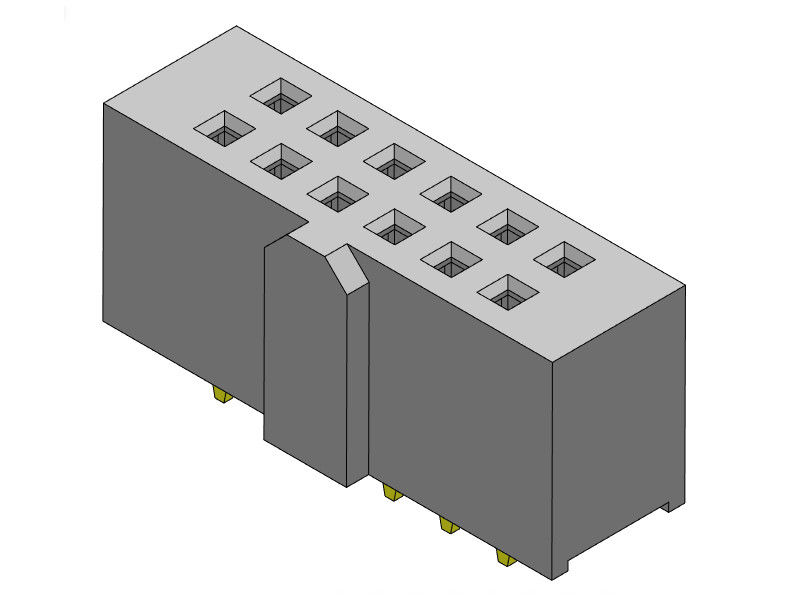

Dual Row Dip TYPE 2.54 Mm Pitch Female Header 2*2PIN To 2*40PIN 0

SYFHA217-XXXXA01.pdf

Primary products

High Speed Board To Board Connector

SMT Board To Board Connector

Wire To Board Connector

Pin Female Header Connector

Box Header Connector

Input Output Connector

LED Header Connector

RF Coaxial Connector

Smart Card Connector

Round Machine Pin Header Connector

Base Station Cable

Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
