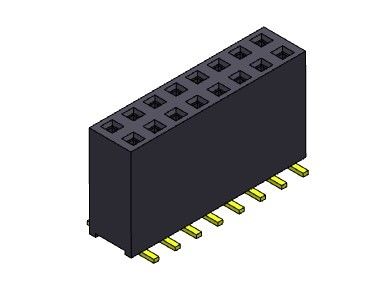

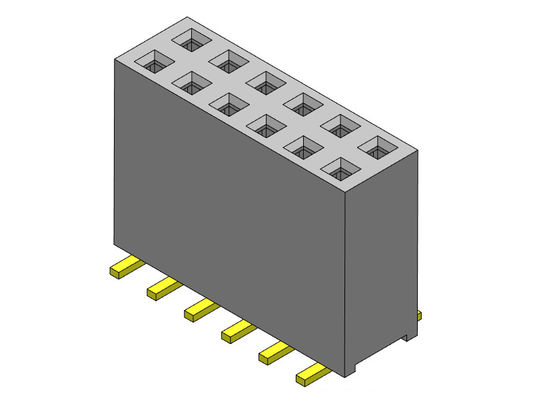

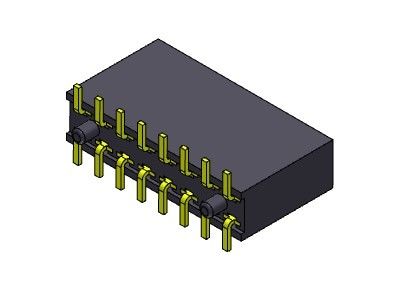

Female Header Connector 2.54mm Dual Row SMT TYPE 2*2PIN To 2*40PIN H=11.00mm
What's the Female Header
Female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.
Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
SYFHC203-XXXXA01.pdf
Product Application
Generally, female headers with suited pin headers are used to finish created modules in electronic industry.As below you can find some of scope of application.
FAQ
Q: How long is your lead time?
A: It depends. Normally, it is 2-6 working days if the goods are in stock,
or it is 7-40 days if the goods not in stock.
Q: What is your terms of payment ?
A: For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than
10000USD, 30% T/T in advance , balance fully paid before shipment.
Q: Do you have any MOQ limit for an order?
A: Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.
Q: How to proceed an order?
A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.
How to order
1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.
2. Choose our website part and send e-mail to our sales team.
3. Small order is welcome.
Shipping
1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.
2. If goods is large:Sea or Air shipping method
How to Packing
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
