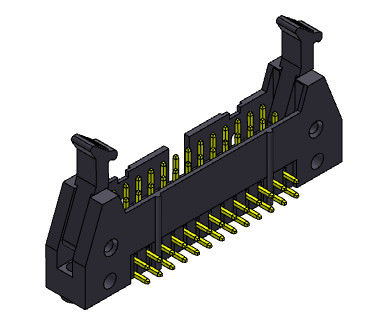

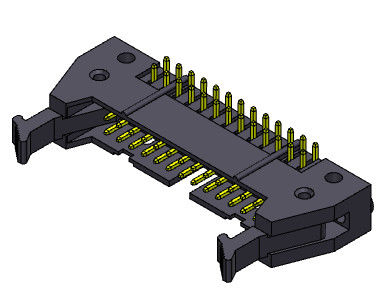

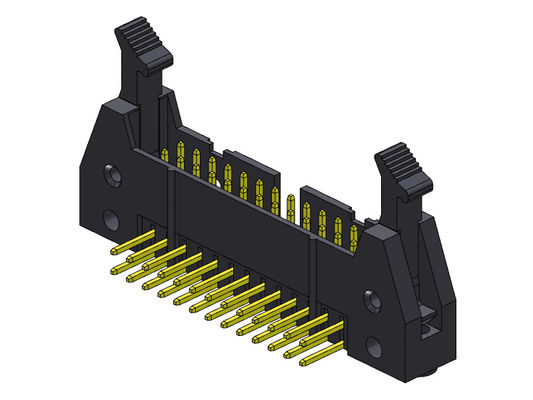

Ejector Header Socket Connector 2.54mm Nylon9T 10-68Pin 3AMP 500V

Ejector Header 2.54mm Dual Row Right Angle Type Nylon9T 10-68Pin 3AMP 500V AC For One Minute

What's the Box Header

Box Header is usually called: which is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and the ox horn connector is that the simple ox horn connector removes the buckles on both sides. Classification of Box Header: Box Header are divided in 1.27mm pitch Box Header, 2.0mm pitch Box Header and 2.54mm pitch Box Header according to PIN needle gauge. The diameter of the square row needles used will be changed accordingly according to the different pitch.According to the installation form, it can be divided in straight needle Box Header, curved needle Box Header and SMT patch Box Header. Function of Box Header: Box Header is welded on PCB board, connect IDC cable of corresponding specifications, and then form the circuit connection mode required by the designer with other circuits. Usually used to transmit control signals and weak currents. Application of Box Header: The products are widely used in computer mainboard, liquid crystal display, telecommunication card, memory, mobile hard disk, card reader, digital camera, MP3, PDA, liquid crystal TV, switch, automobile anti-theft device, video phone, cordless phone and various communication equipment.

SYEJHB220-XXXXA01.pdf

Our Service

1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquirys within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer,We'll provide more than 20pcs samples for prototype project if necessary.

5. Our business is not just about connector supply, it's about delivering promises.

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing.

4. Reel Packing with Cap, suitable for automatic machine producing.
