Battery Connector

Pitch 2.5mm Battery Charger Connector H 3.0mm Battery 4 Pin Connector SMT Type

All Category

High Speed Board To Board Connectors

Pitch 2.5mm Battery Charger Connector H 3.0mm Battery 4 Pin Connector SMT Type

Brand Name:	Soyoung
Model Number:	SYBC-80-4PD-300
MOQ:	2000PCS
Price:	It depends on the customers' requests and can be negotiable.
Packaging Details:	Tape Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,REACH

Current Rating:

2.0AMP

Voltage:

Insulation Resistance:

500M Ω Min

Color:

Natural/Black

Supply Ability:

1000K/M

Highlight:

Pitch 2.5mm Battery Charger Connector

Battery Charger Connector H 3.0mm

H 3.0mm Battery 4 Pin Connector

Product Description

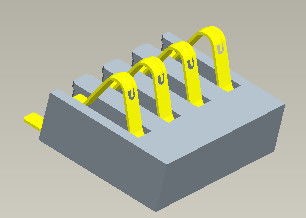

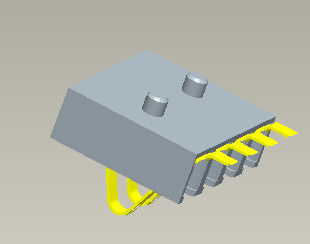

Pitch 2.5mm Battery Connector SMT Type With Pegs H=3.0mm 4Pin Life Test=3000 Cycles Min

Scope Of Application

Battery connectors are used to connect detachable batteries in most portable devices. Adopting various different directions and PCB installation methods, such as positive pressure, side pressure, sinking plate, and top pin, with spacing sizes of 1.2 to 6.5mm, terminal numbers of 2p to 8pin, and rated current of up to 10A. We can meet any customized requirements, including the required matching heights, to save space.

Pitch 2.5mm Battery Charger Connector H 3.0mm Battery 4 Pin Connector SMT Type 0

SYBC-80-4PD-300 Pitch2.5mm 4Pin H=3.0mm.pdf

Our Service

1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquirys within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer,We'll provide more than 20pcs samples for prototype project if necessary.

5. Our business is not just about connector supply, it's about delivering promises.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing

4. Reel Packing with Cap, suitable for automatic machine producing

How to Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
