4 Holes RF Sma Smb Connector 14.7MM for connecting coaxial cables

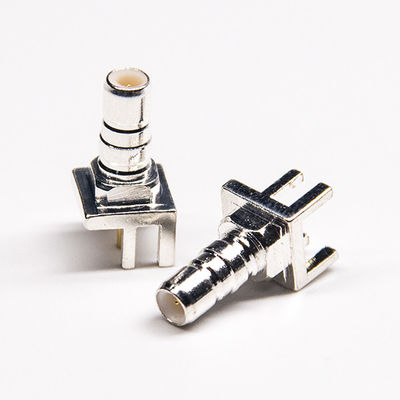

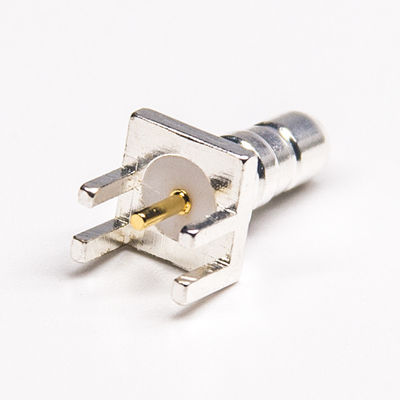

4 Holes RF SMB Connector Plug Vertical 180° Dip Type For PCB Mount L=14.7MM

SMB Connectors

SMB is a small push-lock RF coaxial connector with the characteristics of small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Commonly used on wireless devices for connecting base station side E1 transmission cables to base station DDF small transmission boxes. The SMB connector was invented in the 1960s and is smaller in size than the SMA connector. There are two kinds of characteristic impedance: 50 ohms and 75 ohms. Has excellent electrical characteristics in the frequency range of DC to 4GHz. SSMB is a mini version of the SMB connector that can support up to 12.4GHz.

SYRF-SMB-003.pdf

Our Service

1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquirys within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer,We'll provide more than 20pcs samples for prototype project if necessary.

5. Our business is not just about connector supply, it's about delivering promises.

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method.
