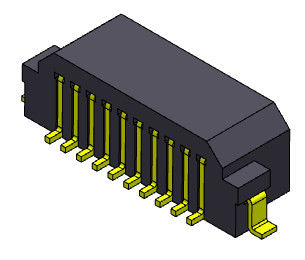

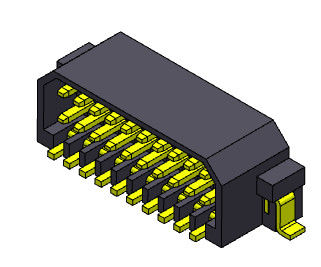

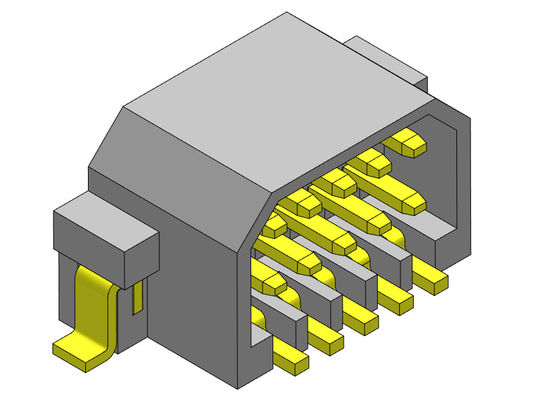

Pitch 1.00mm Board To Board Connector SMT BTB connector 10-30Pin LCP

Board To Board Pitch 1.00mm Male Side Entry SMT Type Series BTB H=4.4mm 10-30Pin LCP

Details of board to board

Finely spaced plate to plate connectors are optimized interconnect solutions for smaller, thinner electronic consumer products. These connectors can meet the trend of miniaturization in the market. The product series has smaller pin spacing, narrower body and lower insertion height and various advantages: molding contacts provide contact on the rolling surface, which is highly reliable; it is practical, easy to insert, durable, enough space, and a nickel barrier to facilitate welding.

Product advantages

1. long self calibration distance, easy assembly and socket.
2. wide open area suitable for standard nozzle size
3. multi point contact system can be securely connected
4. the nickel blocking layer on the single contact can minimize the wicking problem.

SYMCC204-XXXXB01 Side Entry Mlae.pdf

Scope Of Application

Board-to-board connectors are the most powerful connector products of all connector product types, widely used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry etc.

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing.

4. Reel Packing with Cap, suitable for automatic machine producing.

FAQ

Q: What is the MOQ?

A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.

2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2004 etc.
