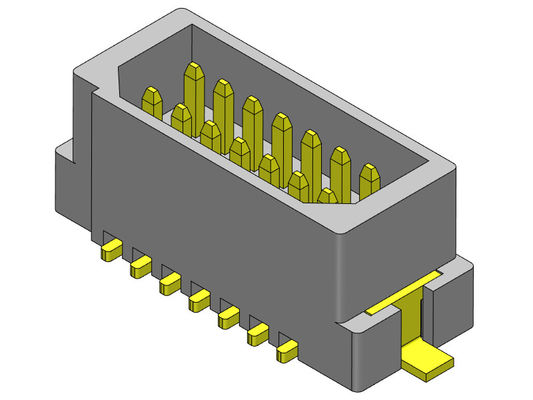

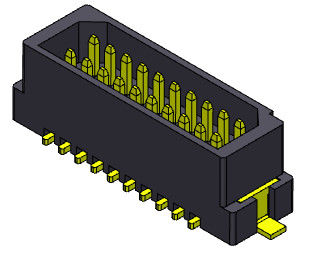

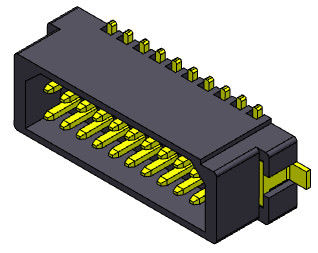

Pitch 1.00mm SMT Board To Board Connector Male Surface Mount Power Connector

Board To Board Pitch 1.00mm Male Vertical SMT Type Series 03-30Pin UL94V0 LCP

Details of board to board

Finely spaced plate to plate connectors are optimized interconnect solutions for smaller, thinner electronic consumer products. These connectors can meet the trend of miniaturization in the market. The product series has smaller pin spacing, narrower body and lower insertion height and various advantages: molding contacts provide contact on the rolling surface, which is highly reliable; it is practical, easy to insert, durable, enough space, and a nickel barrier to facilitate welding.


There are different classifications for connectors
1. board to board connector manufacturers according to the frequency points, there are high frequency connectors and low frequency connectors.
2. according to the shape, there are circular machines and rectangular machines.
3. according to usage, there are printed circuit board connectors, cabinet connectors and audio equipment.
Connectors, power connectors, special purpose connectors and so on.

SYMCC248-XXXXA01 Vertical SMT Male.pdf

Why Choose Soyoung

Automatic Production More than 80% Soyoung products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing.

4. Reel Packing with Cap, suitable for automatic machine producing.

FAQ

Q: How long is your lead time?

A: It depends. Normally, it is 2-6 working days if the goods are in stock,

or it is 7-40 days if the goods not in stock.

Q: What is your terms of payment ?

A: For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than

10000USD, 30% T/T in advance , balance fully paid before shipment.

Q: Do you have any MOQ limit for an order?

A: Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

Q: How to proceed an order?

A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.
